Industrial Cartridge Filter Housing



Cartridge Filter Housing

Working pressure	<0.6MP
Filtration accuracy	0.45um-30um
Filtration flow	0.15m³/hour-100 tons/hour
Filter interface mode	222; 226; 215; flat head; thread
Connection method	flange, lifting ring, thread
Maximum working temperature	≤200℃

Technical parameter

YUBO's Industrial Cartridge Filter Housings are made of high-quality materials and come in a variety of options.

The following advantages set our cartridge filters apart from the competition:

High dirt holding capacity

High-temperature and high-pressure design

Satisfy various filtering prerequisites

Rugged Construction

Model

Product Model

Cartridge Filters-YTQ series	Flow	Filter element		Inlet /outlet	Dimensions

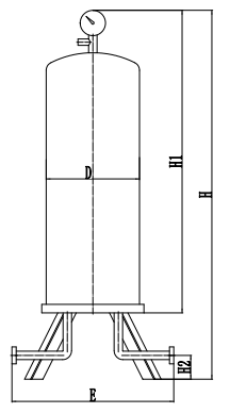

	m³/h	Quantity	Lengthmm	outer diametermm	H  mm	H1 mm	H2 mm	D  mm	E  mm	pressure
YTQ100-10	0.3-0.5	1	10"	25	600	400	80	100	220	≤0.6Mpa
YTQ100-20	0.5-1		20"	25	800	600
YTQ100-30	1-1.5		30"	25	1050	900
YTQ200-10	1-1.5	3	10"	32	650	450	120	200	320
YTQ200-20	1.5-3		20"	32	950	650
YTQ200-30	2.5-4.5		30"	34	1150	950
YTQ220-10	1.5-2.5	5	10"	32	650	450	120	220	350
YTQ220-20	3-5		20"	32	950	650
YTQ220-30	4.5-7.5		30"	38	1150	950
YTQ250-10	5-7	7	10"	38	950	650	150	250	400
YTQ250-20	6-10		20"	48	1150	950
YTQ250-30	8-14		30"	48	1450	1200
YTQ300-20	6-8	9	20"	48	1000	700	150	300	450
YTQ300-30	8-12		30"	48	1250	950
YTQ300-40	12-15		40"	48	1400	1200
YTQ350-20	6-12	12	20"	48	1100	800	200	350	500
YTQ350-30	12-18		30"	57	1350	1050
YTQ350-40	16-24		40"	57	1600	1300
YTQ400-20	8-16	15	20"	76	1100	800	200	400	550
YTQ400-30	18-25		30"	76	1350	1050
YTQ400-40	20-30		40"	76	1300	1300
Note: Filter element interface form: M20/M30, 222 (plug-in type), 226 (snap-in type), flat pressure port, threaded port, etc. Special interface can be customized.  Import and export connection form: quick installation, thread, flange and other forms  Pressure gauge (optional)

Cartridge Filters-YTF series	Specifications		Inlet /outlet	Dimensions
	Elements	Length(mm)	Diameter(mm)	Tank Diameter	Height
YTF102-5	1	5"	25	102	570
YTF102-10		10"			690
YTF102-20		20"			940
YTF102-30		30"			1190
YTF184-10	3	10"	32	184	720
YTF184-20		20"			980
YTF184-30		30"			1210
YTF219-10	5	10"	38	219	730
YTF219-20		20"			990
YTF219-30		30"			1220
YTF219-40		40"			1460
YTF273-20	7	20"	45	273	1060
YTF273-30		30"			1290
YTF273-40		40"			1530
YTF325-20	9	20"	51	325	1080
YTF325-30		30"			1310
YTF325-40		40"			1550
YTF350-20	12	20"	57	350	1150
YTF350-30		30"			1380
YTF350-40		40"			1620
YTF400-20	18	20"	76	400	1160
YTF400-30		30"			1390
YTF400-40		40"			1630
YTF450-20	21	20"	89	450	1190
YTF450-30		30"			1420
YTF450-40		40"			1660
Note: Filter element interface form: M20/M30, 222 (plug-in type), 226 (snap-in type), flat pressure port, threaded port, etc. Special interface can be customized. Import and export connection form: quick installation, thread, flange and other forms  Pressure gauge (optional)

YUBO provides filters for various industrial applications. We offer self-cleaning filters, cartridge filters, basket filters, bag filters and custom-engineered filtration systems. We are one of the leading filter manufacturers, exporters, and suppliers.

Contact and Advice

For advice and custom cartridge filters or filtration solutions please contact us directly for a quote. Tel: 86-311-85955658, Email: sales@oemubo.com

Our team of filter experts is available 24/7.

We have specialized in industrial filtration for more than 10 years.

Application field of filter element

Food and Beverage IndustryIndustry Wastewater TreatmentCement Industry FiltrationOil ,Gas, Refineries, Petrochemicals etc Industry
